Power Transformer

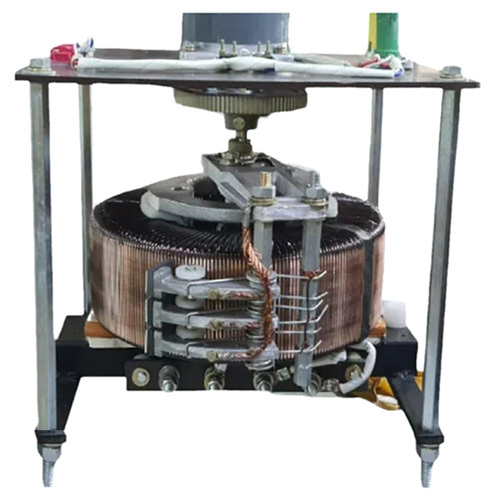

• Capacity
• 60 Amp

• Coil Material
• Other , Copper

• Coil Number
• Other, Single Coil

• Coil Structure
• Other, Toroidal, Open Type

• Cooling Type
• Air Natural Cooled (AN)

• Dimension (L*W*H)
• 540 x 600 x 350 mm

• Efficiency
• >95%

• Frequency (MHz)
• 50 Hz (0.05 MHz)

• High Voltage
• 270 V Max Output

• Load Loss
• Negligible

• Low Voltage
• 0 V (adjustable start point)

• Material
• Copper Winding with Laminated Core

• Operating Temperature
• -10C to +45C

• Output
• 0-270 V AC Adjustable

• Phase
• Single Phase

• Power Scope
• Up to 35 kVA

• Product Type
• Other, Variable Auto Transformer (Variac)

• Rated Voltage
• 230 V AC

• Standard
• IS: 5142

• Usage
• Industrial and Laboratory Voltage Regulation

• Voltage Booster Type
• Other, Manual Rotary

• Weight
• Approx. 60-80 kg

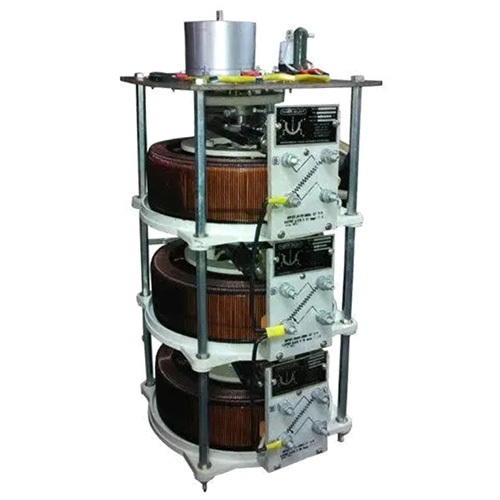

• Capacity
• Available up to 1000 kVA

• Coil Material
• Other , Electrolytic Copper

• Coil Number
• Other, Three Coils

• Coil Structure
• Toroidal

• Cooling Type
• Air Cooled / Oil Cooled

• Dimension (L*W*H)
• Customized as per requirement

• Efficiency
• Above 95%

• Frequency (MHz)
• 50 Hz

• High Voltage
• Up to 430V

• Load Loss
• Low, designed for minimal loss

• Low Voltage
• 0V

• Material
• Copper Winding, Steel Frame

• Operating Temperature
• -10C to +45C

• Output
• Variable AC Voltage

• Phase
• Three Phase

• Power Scope
• Up to 1000 kVA

• Product Type
• Other, Variable Auto Transformer

• Rated Voltage
• 415V

• Standard
• IS 5142, IEC 60076

• Usage
• Industrial Voltage Regulation

• Voltage Booster Type
• Other, Linear Regulator

• Weight
• Depending on capacity (approx. 120 kg to 250 kg)

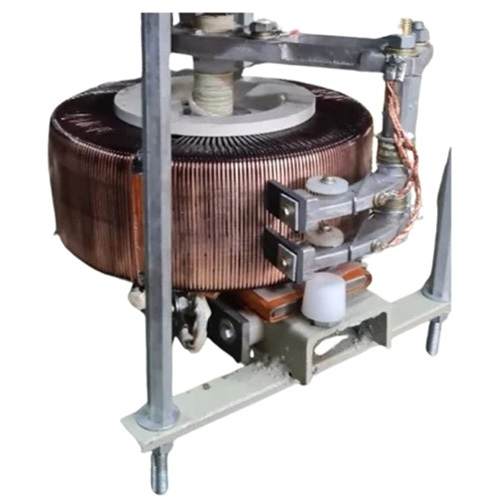

• Capacity
• Variable, typically 2A - 500A

• Coil Material
• Other , Super Enameled Copper

• Coil Number
• Other, One (Toroidal)

• Coil Structure
• Other, Toroidal / Round Wound

• Cooling Type
• Air Cooled / Oil Cooled

• Dimension (L*W*H)
• Varies, typically custom-sized

• Efficiency
• Over 95% Approx.

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• As per design (up to 470V/phase)

• Load Loss
• Minimal, as per efficiency rating

• Low Voltage
• As per design, starting from 0V

• Material
• Copper / Metal Alloy

• Operating Temperature
• -10C to +45C

• Output
• Variable AC Voltage

• Phase
• Other, Single Phase / Three Phase

• Power Scope
• 0.5 kVA to 500 kVA

• Product Type
• Other, Motorized Variac Transformer

• Rated Voltage
• 0-270V / 0-470V / 0-470V to 470V, as per model

• Standard
• IS 5142, IEC 61558

• Usage
• Voltage Regulation, Testing, Laboratories, Industrial Equipment

• Voltage Booster Type
• Other, Continuous, Stepless

• Weight
• Depends on Model (Typically 20-200 kg)

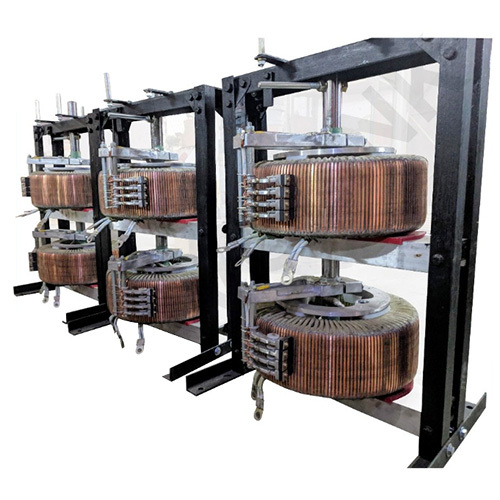

• Capacity
• 200 Ampere

• Coil Material
• Other , Copper

• Coil Number
• Other, Three (for three phase operation)

• Coil Structure
• Toroidal

• Cooling Type
• Air-cooled (Natural Air Cooling/Dry Type)

• Dimension (L*W*H)
• Approx. 1500 mm x 800 mm x 1200 mm (varies by manufacturer)

• Efficiency
• Above 98%

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Customizable up to 600V

• Load Loss
• Low, typically less than 2%

• Low Voltage
• 0V (variable from zero)

• Material
• Copper winding, CRGO steel core, heavy-duty steel frame

• Operating Temperature
• -10C to 45C

• Output
• Variable (typically 0-470V, 0-600V, customizable)

• Phase
• Three Phase

• Power Scope
• Upto 200 A continuous output

• Product Type
• Other, Dry Type Variac Transformer

• Rated Voltage
• 415V AC (input); adjustable output

• Standard
• IS 5142 / IEC 60076 or equivalent

• Usage
• Voltage regulation, voltage testing, motor speed control, laboratories, industrial automation

• Voltage Booster Type
• Other, Auto-transformer

• Weight
• Approx. 300-350 kg (may vary with construction)
