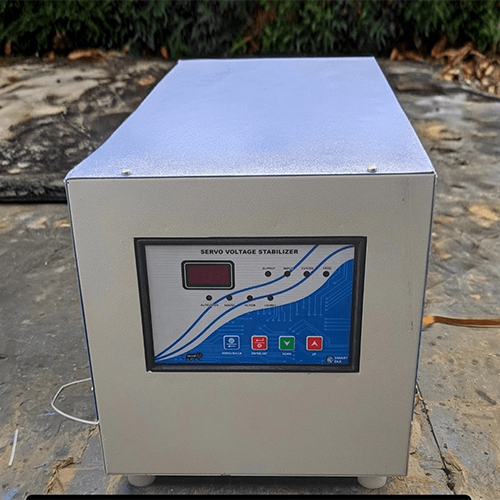

5 KVA Air Cooled Servo Voltage Stablizer

Name: 5 KVA Air Cooled Servo Voltage Stablizer
Brand: SENSEX POWER SOLUTION
Price: 12000 INR
Availability: InStock

Price 12000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

5 KVA Air Cooled Servo Voltage Stablizer Specification

Output Current
21.7A (at 230V)

Input Voltage
170V - 270V AC

Output Voltage
230V AC 1% (adjustable)

Efficiency
Above 95%

Frequency (MHz)
50 Hz

Phase
Single Phase

Current
Max 21.7A at rated output

Weight
Approx. 28 kg

Ambient Temperature
0C to 45C

Degree of Protection
IP20

Control System
Microprocessor based

Usage
Industrial, Commercial, Residential

Design
Floor Mounted, Compact

Insulation Resistance
>= 500 Mega Ohms

Voltage Protection
Over/Under Voltage Protection

Display
Digital Volt/Amp meter

Dimension (L*W*H)
Approx. 450 x 300 x 350 mm

Rated Power
5 KVA

Current Type
AC

Waveform Distortion
Negligible

Product Type
Air Cooled Servo Voltage Stabilizer

Operating Humidity
Up to 95% RH (non-condensing)

Regulation
1%

Correction Speed
35 Volts/sec

Alarm Indication
Yes

Transformer Type
Copper Wound

Mounting Type
Floor standing

Paint Finish
Powder coated

Cooling
Air Cooled

Noise Level
Low

Response Time
< 1 sec for 10% input variation

Input/Output Connectors
Terminal connections

5 KVA Air Cooled Servo Voltage Stablizer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
5 Days

About 5 KVA Air Cooled Servo Voltage Stablizer

Spotlight on the 5 KVA Air Cooled Servo Voltage Stabilizer: an affordable yet first-rate solution for your power regulation needs. Recognized as a venerable choice, it offers impeccable correction speed at 35 Volts/sec and boasts microprocessor-based control for precision. Designed for the lowest price without sacrificing quality, this stabilizer ensures negligible waveform distortion and low noise levels. Its robust copper-wound transformer, impeccable 1% regulation, and digital volt/amp meter provide reliable performance. Perfect for industrial, commercial, or residential applications across India, this compact floor-standing stabilizer delivers consistent 230V output and superior efficiency above 95%.

Versatile Applications of 5 KVA Air Cooled Servo Voltage Stabilizer

Ideal for industrial, commercial, and residential use, this stabilizer suits a broad array of operational surfaces, including factories, office complexes, and residential buildings. Designed for floor-mounted installation, it provides seamless voltage regulation wherever reliable energy is critical. Its compact structure, coupled with advanced protection features, ensures suitability in environments where space, reliability, and user safety are prioritized, making it the preferred choice for safeguarding sensitive equipment.

Packaging, Export Valuation, and Prompt Dispatching

With secure packaging to protect its integrity during transit, the 5 KVA Air Cooled Servo Voltage Stabilizer holds strong market value and is respected for long-term performance. Exported primarily to diverse markets including Asia and Africa, each unit undergoes rigorous valuation checks before dispatching. Typical delivery time ranges from 7 to 15 working days, ensuring prompt arrivals for domestic or international orders. Trust in meticulous shipping protocols and dependable timelines when ordering from India.

FAQ's of 5 KVA Air Cooled Servo Voltage Stablizer:

Q: How does the 5 KVA Air Cooled Servo Voltage Stabilizer maintain voltage accuracy?

A: The stabilizer uses a microprocessor-based control system to deliver corrections at a rapid 35 Volts/sec, ensuring the output voltage remains at 230V AC 1%. This results in precise, reliable voltage regulation for sensitive equipment.

Q: What are the primary benefits of using a copper-wound transformer in this stabilizer?

A: Copper windings offer lower resistance and higher thermal conductivity, resulting in efficient energy transfer, reduced losses, and enhanced durability, ensuring long-lasting, first-rate performance.

Q: Where can this voltage stabilizer be effectively used?

A: This model is suitable for industrial settings, commercial facilities, and residential spaces-anywhere consistent voltage is crucial to protect appliances and machinery from power fluctuations.

Q: What is the process for installing the 5 KVA stabilizer?

A: Installation involves floor-mounting the stabilizer, securely connecting terminals for input/output, and configuring the digital meter. It is recommended to use professional services for setup to ensure optimal performance and safety.

Q: When can customers expect delivery after placing an order?

A: After confirming the order, the standard dispatching time ranges from 7 to 15 working days, depending on the delivery location and export requirements.
