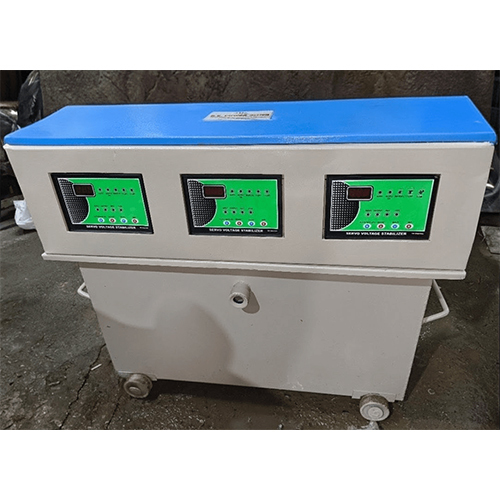

30 KVA Oild Cooled Three Phase Servo Voltage Stabilizer

Send Inquiry

Request To Call Back

30 KVA Oild Cooled Three Phase Servo Voltage Stabilizer

Name: 30 KVA Oild Cooled Three Phase Servo Voltage Stabilizer
Brand: SENSEX POWER SOLUTION
Price: 60000 INR
Availability: InStock

Price 60000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

30 KVA Oild Cooled Three Phase Servo Voltage Stabilizer Specification

Output Current
Max 43 A per phase

Input Voltage
340-480 V (can be customized)

Output Voltage
400 V 1% (adjustable as per requirement)

Efficiency
98%

Frequency (MHz)
50 Hz

Phase
Three Phase

Current
Up to 43 A per phase

Weight
Approx. 175 kg

Ambient Temperature
0C to 50C

Degree of Protection
IP21

Control System
Servo Motor Controlled, Closed Loop System

Usage
Industrial, Commercial

Insulation Resistance
>5 Mega Ohms at 500 V DC

Design
Floor Mounted, Enclosed Unit

Voltage Protection
Over Voltage, Under Voltage, Short Circuit Protection

Display
Digital Meter Display (for voltage, current, etc.)

Dimension (L*W*H)
Approx. 1100 x 600 x 900 mm

Rated Power
30 KVA

Current Type
AC

Waveform Distortion
Negligible (<1%)

Product Type
Oil Cooled Three Phase Servo Voltage Stabilizer

Cooling Type
Oil Immersed

Relative Humidity
Up to 95% non-condensing

Bypass Mechanism
Manual/Automatic Bypass Switch (optional)

Operating Noise Level
Less than 50 dB

Mounting
Heavy Duty Caster Wheels

Transformer Winding
Copper Wound

Enclosure Material
MS with Powder Coating

Response Time
Less than 20 milliseconds

Connection Type
Terminal/Bus Bar

Regulation Speed
35 V/sec

30 KVA Oild Cooled Three Phase Servo Voltage Stabilizer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
5 Days

About 30 KVA Oild Cooled Three Phase Servo Voltage Stabilizer

Discover sensational performance and gilt-edged reliability with our 30 KVA Oil Cooled Three Phase Servo Voltage Stabilizer. Select this floor-mounted, enclosed unit for industrial and commercial applications seeking monumental precision. Featuring copper-wound transformer, heavy-duty caster wheels, and digital display, it ensures a response time under 20 ms and regulation speed of 35 V/sec. The system functions quietly (<50 dB) with negligible waveform distortion and offers both manual and automatic bypass. Now on clearance-secure best price from India's premier manufacturer and supplier. Input voltage and protection are customizable for your requirements.

Optimal Plant Application and Versatile Utility

The 30 KVA Oil Cooled Three Phase Servo Voltage Stabilizer excels across diverse plant settings, making it ideal for industrial manufacturing, processing units, and commercial complexes. This robust stabilizer is engineered for consistent output, even in challenging conditions, supporting up to 95% relative humidity. Its flexible configuration supports both commercial and heavy industrial use. The enclosed, floor-mounted design ensures reliable performance wherever continuous, uninterrupted current is a priority.

Payment Conditions and Packaging Details Simplified

We provide clear estimates at the outset to streamline your order completion process. Evaluations for sample availability can be arranged, enabling you to assess product quality firsthand. Payment terms are tailored according to industry standards, ensuring smooth and reliable transactions. Packaging is robust and secure, designed to safeguard the stabilizer during transport, ensuring it arrives in pristine condition. All aspects of valuation and order tracking are transparent for a worry-free purchase experience.

FAQ's of 30 KVA Oild Cooled Three Phase Servo Voltage Stabilizer:

Q: How does the 30 KVA Oil Cooled Servo Voltage Stabilizer enhance industrial operations?

A: This stabilizer delivers monumental voltage consistency and rapid response, protecting sensitive machinery from fluctuations and ensuring optimum efficiency in industrial environments.

Q: What kind of protection features are integrated into this stabilizer?

A: It offers multiple protective measures, including over voltage, under voltage, and short circuit protection, safeguarding your equipment and facility at all times.

Q: When should I use the manual or automatic bypass mechanism?

A: The manual or automatic bypass switch is ideal during system maintenance or emergencies, allowing seamless power continuity without interrupting uptime.

Q: Where can this stabilizer be installed?

A: Thanks to its heavy-duty caster wheels and robust design, it can be floor-mounted easily in industrial plants, commercial facilities, or any large-scale operation requiring voltage regulation.

Q: What is the process to order and receive samples of this stabilizer?

A: You can request a valuation and initial estimate, after which sample availability will be confirmed. Upon approval, samples are securely packaged and shipped for your evaluation.

Q: How does the copper wound transformer benefit usage?

A: Copper winding ensures superior conductivity, efficient performance, and longevity, making the stabilizer reliable for long-term industrial and commercial operations.
